- Idler
1. Product Description:

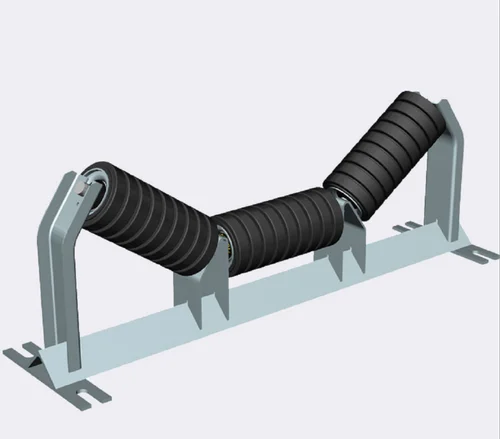

Green Power SD manufactures robust Conveyor Idlers designed to support conveyor belts and maintain smooth material movement in heavy-duty industrial environments. Our idlers are engineered for strength, durability, and reliable performance under continuous load conditions.
- Available Specifications
- Idler Diameter: As per requirement
- Idler Length: As per belt width
- Trough Angle: 20°, 30°, 35°, 45°
- Bearing Type: Sealed & Shielded Bearings
- Frame Type: Rigid / Adjustable / Custom
Technical Specifications
Parameter
Specification
Idler Type
Carrying / Return / Impact
Idler Diameter
As per requirement
Idler Length
As per belt width
Troughing Angle
20°, 30°, 35°, 45°
Bearing Type
Sealed & Shielded
Frame Type
Rigid / Adjustablepe
Material
Mild Steel
Application
Bulk Material Handling
2. Operating Principle:
Conveyor idlers support the conveyor belt and help maintain proper belt shape and alignment. They rotate freely to reduce friction, minimize belt wear, and ensure efficient material transport along the conveyor system.
3. Types / Categories Available
To meet diverse industrial requirements, we offer conveyor rollers in the following categories:
Carrying Rollers – Support the loaded side of the conveyor belt
Return Rollers – Support the empty return side of the belt

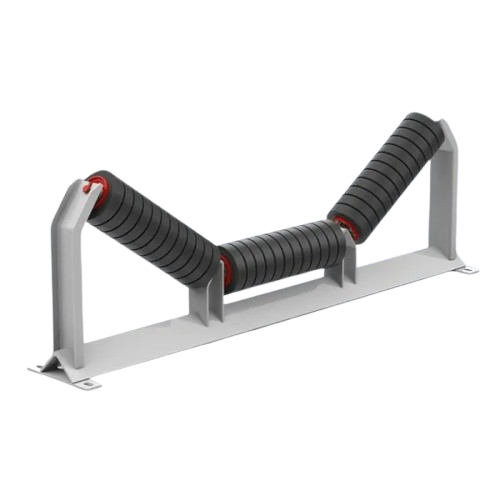

Impact Rollers – Designed to absorb shock at loading points
